IMA CONCEPT offers in Romanian and in European market Commercial Reverse Osmosis systems, any size, being a European manufacturer with CE certification. The systems are delivered from the own stock in the shortest possible time in all the countries from the Europe.
Our team of technicians, sales managers and engineers will advise and help you to implement the systems from zero.
Industrial reverse osmosis systems can be used in almost any kind of applications from domestic applications to industrial manufactory as: the auto industry, glass industry, chemical industry, drink and food industry etc. The reverse osmosis process results in a reduction of up to 95-99% of water conductivity or TDS and the results is a demineralized water. This means that from 100 ppm TDS after the reverse osmosis module we will remain with between 5 and 1 ppm depending on the water quality, ph and water temperature.
Systems that use the process of industrial reverse osmosis have become increasingly popular lately due to low operating costs and ease to use.
Before to install a industrial reverses osmosis is mandatory to know the water analysis for choosing the best option for prefiltration. Industrial reverse osmosis systems have osmosis membranes that filter at a fineness of 0.001 microns and cannot be used with water that has limestone and iron. For this reason, an industrial reverse osmosis system is always preceded by a softening / deferment system or is equipped with an antiscalant in the case of high flows.
Why buy an industrial osmosis system from IMA CONCEPT?
- Each delivered system is tested by ourselves, with water, to ensure 100% the right operation and to remove any possible manufacturing malfunctions .
- Industrial reverse osmosis systems are designed by a team of engineers together with chemists
- Training and technical support are ensured
- The systems are designed according to the needs of the location and the characteristics of the water.
The system of industrial reverse osmosis has included:
- mechanical pre-filtering
- osmotic membranes
- pressure pump
- conductivity monitor
- electric valve
- low pressure switch
- optional controller
- flowmeters and pressure gauges
- recirculation function for any system

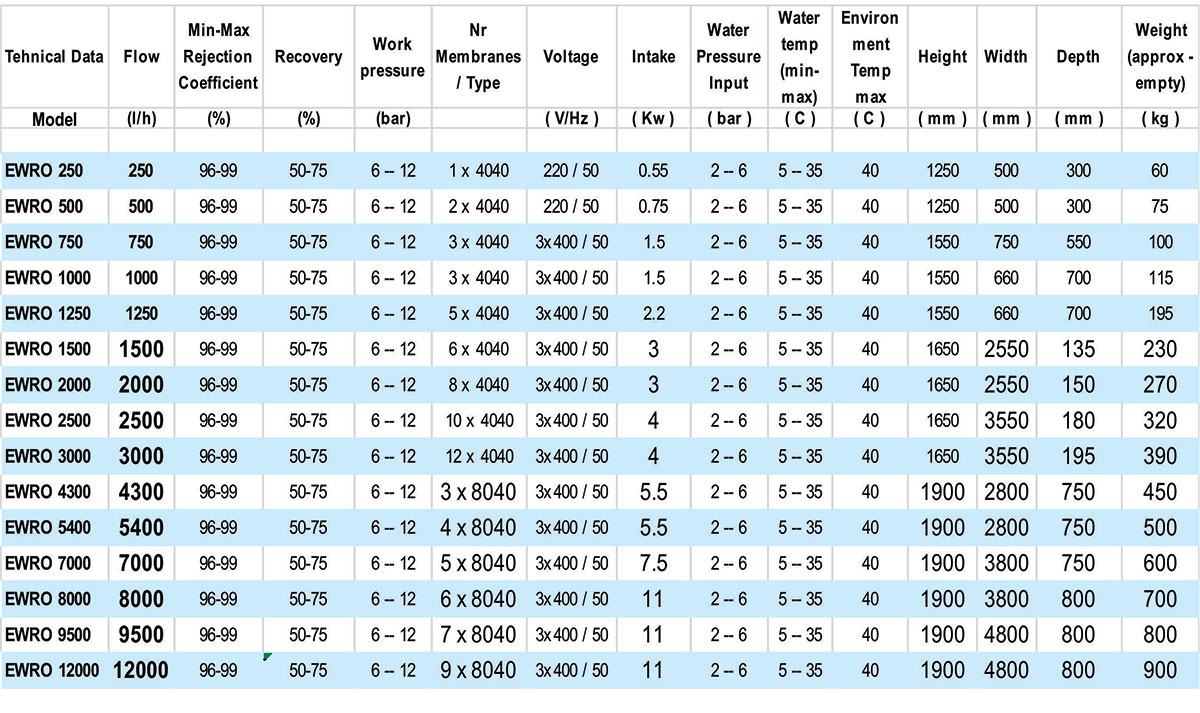

Types of Industrial Reverses Osmosis
Industrial reverse osmosis systems are chosen according to several things like:
- Flow rate (50 – 50 000 liters / hour) (on request any kind of systems can be built)
- Type of feed water (Soft – Brackish – Sea water)
- Percentage of water recovery (50 – 90%)
- Percentage of salt retention (95 – 99.5%)
- Pressure operated or external storage systems.
REVERSE OSMOSIS – EWRO 250
APPLICATIONS
ExpertWater Reverse Osmosis can be used in multiple range of water treatment processes as pharmaceutical, process water, rinse water, steam boilers, heating and cooling circuits, agriculture, desalinisation, food and beverages, automotive industry (self service car wash), glass washing, cleaning – any application that needs to use demineralised water.
It delivers demineralised water by reverse osmosis process. This means a reduction of up to 95-99% of water conductivity (or TDS) and the result is a demineralized water. This means that from 100 ppm TDS after the reverse osmosis module we will remain with between 5 and 1 ppm depending on the water quality, ph and water temperature.
OPTIONS
- Raw water mixing line
- Controller ROC 8221
Flow rate: 250 l/h (66 gallons/ hour)
Volume per day: 6000 liters ( 6 cbm) (1585 gpd)
EQUIPMENT
Osmotic membranes 4040 – Included!
High Pressure Pump
4040 SS Membrane housings
Mechanical Prefilter
Solenoid valves
Regulating Valves (concentrate and recirculation)
Stainless steel frame & panel
Conductivity monitor
Low pressure switch – to protect the system
Permeate – Concentrate and Recirculation Flowmeter
Recirculation function – reduces the drain water flow
TECHNICAL DATA
Flow rate: 250 l/h (66 gallons/ hour)
Volume per day: 6000 liters ( 6 cbm) (1585 gpd)
RO Membrane (type/pcs): 4040 / 1
Salt Retension: 95 – 99%
Permeate recovery: 50 – 75%
Maximum TDS: 1500 PPM
Operating Pressure: 6-12 bar
Maximum Pressure: 15 bar
Electrical supply: 230V – 50 Hz
Power: 0.75 kW
Prefilter: 5 microns
Minimum water pressure supply: 2 bar
Water temperature: 5-35 C
Only free Chlorine inlet water
Model: EWRO 250
CONNECTIONS
Permeate: 1/2″
Concentrate: 1/2″
Inlet: 1/2″
Dimensions: L x l x H : 50 x 33 x 152 cm
Weight: 40 kg
READY TO USE – ALREADY TESTED – RO SYSTEM
REVERSE OSMOSIS – EWRO 500
APPLICATIONS
ExpertWater Reverse Osmosis can be used in multiple range of water treatment processes as pharmaceutical, process water, rinse water, steam boilers, heating and cooling circuits, agriculture, desalinisation, food and beverages, automotive industry (self service car wash), glass washing, cleaning – any application that needs to use demineralised water.
It delivers demineralised water by reverse osmosis process. This means a reduction of up to 95-99% of water conductivity (or TDS) and the result is a demineralized water. This means that from 100 ppm TDS after the reverse osmosis module we will remain with between 5 and 1 ppm depending on the water quality, ph and water temperature.
OPTIONS
- Raw water mixing line
- Controller ROC 8221
Flow rate: 500 l/h (132 gallons/ hour)
Volume per day: 12000 liters (12 cbm) (3170 gpd)
EQUIPMENT
Osmotic membranes 4040 – Included!
High Pressure Pump
4040 SS Membrane housings
Mechanical Prefilter
Solenoid valves
Regulating Valves (concentrate and recirculation)
Stainless steel frame & panel
Conductivity monitor
Low pressure switch – to protect the system
Permeate – Concentrate and Recirculation Flowmeter
Recirculation function – reduces the drain water flow
TECHNICAL DATA
Flow rate: 500 l/h (132 gallons/ hour)
Volume per day: 12000 liters (12 cbm) (3170 gpd)
RO Membrane (type/pcs): 4040 / 2
Salt Retension: 95 – 99%
Permeate recovery: 50 – 75%
Maximum TDS: 1500 PPM
Operating Pressure: 6-12 bar
Maximum Pressure: 15 bar
Electrical supply: 230V – 50 Hz
Power: 0.75 kW
Prefilter: 5 microns
Minimum water pressure supply: 2 bar
Water temperature: 5-35 C
Only free Chlorine inlet water
Model: EWRO 500
CONNECTIONS
Permeate: 1/2″
Concentrate: 1/2″
Inlet: 1/2″
Dimensions: L x l x H : 50 x 33 x 152 cm
Weight: 50 kg
READY TO USE – ALREADY TESTED – RO SYSTEM
REVERSE OSMOSIS – EWRO 750
APPLICATIONS
ExpertWater Reverse Osmosis can be used in multiple range of water treatment processes as pharmaceutical, process water, rinse water, steam boilers, heating and cooling circuits, agriculture, desalinisation, food and beverages, automotive industry (self service car wash), glass washing, cleaning – any application that needs to use demineralised water.
It delivers demineralised water by reverse osmosis process. This means a reduction of up to 95-99% of water conductivity (or TDS) and the result is a demineralized water. This means that from 100 ppm TDS after the reverse osmosis module we will remain with between 5 and 1 ppm depending on the water quality, ph and water temperature.
OPTIONS
- Raw water mixing line
- Controller ROC 8221
Flow rate: 750 l/h (200 gallons/ hour)
Volume per day: 18000 liters(18cbm) (4800 gpd)
EQUIPMENT
Osmotic membranes 4040 – Included!
High Pressure Pump
4040 SS Membrane housings
Mechanical Prefilter
Solenoid valves
Regulating Valves (concentrate and recirculation)
Stainless steel frame & panel
Conductivity monitor
Low pressure switch – to protect the system
Permeate – Concentrate and Recirculation Flowmeter
Recirculation function – reduces the drain water flow
TECHNICAL DATA
Flow rate: 750 l/h (200 gallons/ hour)
Volume per day: 18000 liters(18cbm) (4800 gpd)
RO Membrane (type/pcs): 4040 / 3
Salt Retension: 95 – 99%
Permeate recovery: 50 – 75%
Maximum TDS: 1500 PPM
Operating Pressure: 6-12 bar
Maximum Pressure: 15 bar
Electrical supply: 230V – 50 Hz (or 380V)
Power: 1.5 kW
Prefilter: 5 microns
Minimum water pressure supply: 2 bar
Water temperature: 5-35 C
Only free Chlorine inlet water
Model: EWRO 750
CONNECTIONS
Permeate: 1/2″
Concentrate: 1/2″
Inlet: 1″
Dimensions: L x l x H : 70 x 52 x 152 cm
Weight: 80 kg
READY TO USE – ALREADY TESTED – RO SYSTEM
REVERSE OSMOSIS – EWRO 1000
APPLICATIONS
ExpertWater Reverse Osmosis can be used in multiple range of water treatment processes as pharmaceutical, process water, rinse water, steam boilers, heating and cooling circuits, agriculture, desalinisation, food and beverages, automotive industry (self service car wash), glass washing, cleaning – any application that needs to use demineralised water.
It delivers demineralised water by reverse osmosis process. This means a reduction of up to 95-99% of water conductivity (or TDS) and the result is a demineralized water. This means that from 100 ppm TDS after the reverse osmosis module we will remain with between 5 and 1 ppm depending on the water quality, ph and water temperature.
OPTIONS
- Raw water mixing line
- Controller ROC 8221
Flow rate: 1000 l/h (266 gallons/ hour)
Volume per day: 24000 liters ( 24 cbm) (6400 gpd)
EQUIPMENT
Osmotic membranes 4040 – Included!
High Pressure Pump
4040 SS Membrane housings
Mechanical Prefilter
Solenoid valves
Regulating Valves (concentrate and recirculation)
Stainless steel frame & panel
Conductivity monitor
Low pressure switch – to protect the system
Permeate – Concentrate and Recirculation Flowmeter
Recirculation function – reduces the drain water flow
TECHNICAL DATA
Flow rate: 1000 l/h (266 gallons/ hour)
Volume per day: 24000 liters ( 24 cbm) (6400 gpd)
RO Membrane (type/pcs): 4040 / 4
Salt Retension: 95 – 99%
Permeate recovery: 50 – 75%
Maximum TDS: 1500 PPM
Operating Pressure: 6-12 bar
Maximum Pressure: 15 bar
Electrical supply: 230V – 50 Hz (or 380V)
Power: 1.5 kW
Prefilter: 5 microns
Minimum water pressure supply: 2 bar
Water temperature: 5-35 C
Only free Chlorine inlet water
Model: EWRO 1000
CONNECTIONS
Permeate: 1/2″
Concentrate: 1/2″
Inlet: 1″
Dimensions: L x l x H : 70 x 52 x 152 cm
Weight: 89 kg
READY TO USE – ALREADY TESTED – RO SYSTEM
REVERSE OSMOSIS – EWRO 1250
APPLICATIONS
ExpertWater Reverse Osmosis can be used in multiple range of water treatment processes as pharmaceutical, process water, rinse water, steam boilers, heating and cooling circuits, agriculture, desalinisation, food and beverages, automotive industry (self service car wash), glass washing, cleaning – any application that needs to use demineralised water.
It delivers demineralised water by reverse osmosis process. This means a reduction of up to 95-99% of water conductivity (or TDS) and the result is a demineralized water. This means that from 100 ppm TDS after the reverse osmosis module we will remain with between 5 and 1 ppm depending on the water quality, ph and water temperature.
OPTIONS
- Raw water mixing line
- Controller ROC 8221
Flow rate: 1250 l/h (333 gallons/ hour)
Volume per day: 30000 liters (30 cbm) (8000 gpd)
EQUIPMENT
Osmotic membranes 4040 – Included!
High Pressure Pump
4040 SS Membrane housings
Mechanical Prefilter
Solenoid valves
Regulating Valves (concentrate and recirculation)
Stainless steel frame & panel
Conductivity monitor
Low pressure switch – to protect the system
Permeate – Concentrate and Recirculation Flowmeter
Recirculation function – reduces the drain water flow
TECHNICAL DATA
Flow rate: 1250 l/h (333 gallons/ hour)
Volume per day: 30000 liters (30 cbm) (8000 gpd)
RO Membrane (type/pcs): 4040 / 5
Salt Retension: 95 – 99%
Permeate recovery: 50 – 75%
Maximum TDS: 1500 PPM
Operating Pressure: 6-12 bar
Maximum Pressure: 15 bar
Electrical supply: 220V
Power: 1.5 kW
Prefilter: 5 microns
Minimum water pressure supply: 2 bar
Water temperature: 5-35 C
Only free Chlorine inlet water
Model: EWRO 1250
CONNECTIONS
Permeate: 1/2″
Concentrate: 1/2″
Inlet: 1″
Dimensions: L x l x H : 70 x 52 x 152 cm
READY TO USE – ALREADY TESTED – RO SYSTEM
REVERSE OSMOSIS – EWRO 1500
APPLICATIONS
ExpertWater Reverse Osmosis can be used in multiple range of water treatment processes as pharmaceutical, process water, rinse water, steam boilers, heating and cooling circuits, agriculture, desalinisation, food and beverages, automotive industry (self service car wash), glass washing, cleaning – any application that needs to use demineralised water.
It delivers demineralised water by reverse osmosis process. This means a reduction of up to 95-99% of water conductivity (or TDS) and the result is a demineralized water. This means that from 100 ppm TDS after the reverse osmosis module we will remain with between 5 and 1 ppm depending on the water quality, ph and water temperature.
OPTIONS
- Raw water mixing line
- Controller ROC 8221
Flow rate: 1500 l/h (396 gallons/ hour)
Volume per day: 36000 liters (36 cbm) (9523 gpd)
EQUIPMENT
Osmotic membranes 4040 – Included!
High Pressure Pump
4040 SS Membrane housings
Mechanical Prefilter
Solenoid valves
Regulating Valves (concentrate and recirculation)
Stainless steel frame & panel
Conductivity monitor
Low pressure switch – to protect the system
Permeate – Concentrate and Recirculation Flowmeter
Recirculation function – reduces the drain water flow
TECHNICAL DATA
Flow rate: 1500 l/h (396 gallons/ hour)
Volume per day: 36000 liters (36 cbm) (9523 gpd)
RO Membrane (type/pcs): 4040 / 6
Salt Retension: 95 – 99%
Permeate recovery: 50 – 75%
Maximum TDS: 1500 PPM
Operating Pressure: 6-12 bar
Maximum Pressure: 15 bar
Electrical supply: 220V
Power: 2.2 kW
Prefilter: 5 microns
Minimum water pressure supply: 2 bar
Water temperature: 5-35 C
Only free Chlorine inlet water
Model: EWRO 1500
CONNECTIONS
Permeate: 3/4″
Concentrate: 3/4″
Inlet: 1″
Dimensions: L x l x H : 70 x 52 x 240 cm
The assembly with the horizontal membrane cases also available
READY TO USE – ALREADY TESTED – RO SYSTEM
REVERSE OSMOSIS – EWRO 2000
APPLICATIONS
ExpertWater Reverse Osmosis can be used in multiple range of water treatment processes as pharmaceutical, process water, rinse water, steam boilers, heating and cooling circuits, agriculture, desalinisation, food and beverages, automotive industry (self service car wash), glass washing, cleaning – any application that needs to use demineralised water.
It delivers demineralised water by reverse osmosis process. This means a reduction of up to 95-99% of water conductivity (or TDS) and the result is a demineralized water. This means that from 100 ppm TDS after the reverse osmosis module we will remain with between 5 and 1 ppm depending on the water quality, ph and water temperature.
OPTIONS
- Raw water mixing line
- Controller ROC 8221
Flow rate: 2000 l/h (530 gallons/hour)
Volume per day: 48000 liters ( 48 cbm) (12698 gpd)
EQUIPMENT
Osmotic membranes 4040 – Included!
High Pressure Pump
4040 SS Membrane housings
Mechanical Prefilter
Solenoid valves
Regulating Valves (concentrate and recirculation)
Stainless steel frame & panel
Conductivity monitor
Low pressure switch – to protect the system
Permeate – Concentrate and Recirculation Flowmeter
Recirculation function – reduces the drain water flow
TECHNICAL DATA
Flow rate: 2000 l/h (530 gallons/hour)
Volume per day: 48000 liters ( 48 cbm) (12698 gpd)
RO Membrane (type/pcs): 4040 / 8
Salt Retension: 95 – 99%
Permeate recovery: 50 – 75%
Maximum TDS: 1500 PPM
Operating Pressure: 6-12 bar
Maximum Pressure: 15 bar
Electrical supply: 220V
Power: 2.2 kW
Prefilter: 5 microns
Minimum water pressure supply: 2 bar
Water temperature: 5-35 C
Only free Chlorine inlet water
Model: EWRO 2000
CONNECTIONS
Permeate: 3/4″
Concentrate: 3/4″
Inlet: 1″
Dimensions VERTICAL: L x l x H : 70 x 52 x 240 cm
READY TO USE – ALREADY TESTED – RO SYSTEM
REVERSE OSMOSIS – EWRO 2500
APPLICATIONS
ExpertWater Reverse Osmosis can be used in multiple range of water treatment processes as pharmaceutical, process water, rinse water, steam boilers, heating and cooling circuits, agriculture, desalinisation, food and beverages, automotive industry (self service car wash), glass washing, cleaning – any application that needs to use demineralised water.
It delivers demineralised water by reverse osmosis process. This means a reduction of up to 95-99% of water conductivity (or TDS) and the result is a demineralized water. This means that from 100 ppm TDS after the reverse osmosis module we will remain with between 5 and 1 ppm depending on the water quality, ph and water temperature.
OPTIONS
- Raw water mixing line
- Controller ROC 8221
Flow rate: 2500 l/h (661 gallons/hour)
Volume per day: 60000 (60 cbm) liters (15873 gpd)
EQUIPMENT
Osmotic membranes 4040 – Included!
High Pressure Pump
4040 SS Membrane housings
Mechanical Prefilter
Solenoid valves
Regulating Valves (concentrate and recirculation)
Stainless steel frame & panel
Conductivity monitor
Low pressure switch – to protect the system
Permeate – Concentrate and Recirculation Flowmeter
Recirculation function – reduces the drain water flow
TECHNICAL DATA
Flow rate: 2500 l/h (661 gallons/hour)
Volume per day: 60000 (60 cbm) liters (15873 gpd)
RO Membrane (type/pcs): 4040 / 10
Salt Retension: 95 – 99%
Permeate recovery: 50 – 75%
Maximum TDS: 1500 PPM
Operating Pressure: 6-12 bar
Maximum Pressure: 15 bar
Electrical supply: 220V
Power: 2.2 kW
Prefilter: 5 microns
Minimum water pressure supply: 2 bar
Water temperature: 5-35 C
Only free Chlorine inlet water
Model: EWRO 2500
CONNECTIONS
Permeate: 3/4″
Concentrate: 3/4″
Inlet: 1″
Dimensions VERTICAL: L x l x H : 70 x 52 x 240 cm
READY TO USE – ALREADY TESTED – RO SYSTEM
REVERSE OSMOSIS – EWRO 3000
APPLICATIONS
ExpertWater Reverse Osmosis can be used in multiple range of water treatment processes as pharmaceutical, process water, rinse water, steam boilers, heating and cooling circuits, agriculture, desalinisation, food and beverages, automotive industry (self service car wash), glass washing, cleaning – any application that needs to use demineralised water.
It delivers demineralised water by reverse osmosis process. This means a reduction of up to 95-99% of water conductivity (or TDS) and the result is a demineralized water. This means that from 100 ppm TDS after the reverse osmosis module we will remain with between 5 and 1 ppm depending on the water quality, ph and water temperature.
OPTIONS
- Raw water mixing line
- CIP connections
Flow rate: 3000 l/h (800 gallons/hour)
Volume per day: 72000 liters (72cbm) (19200 gpd)
EQUIPMENT
Osmotic membranes 4040 – Included!
High Pressure Pump
4040 SS Membrane housings
Mechanical Prefilter
Solenoid valves
Regulating Valves (concentrate and recirculation)
Stainless steel frame & panel
Conductivity monitor
Low pressure switch – to protect the system
Permeate – Concentrate and Recirculation Flowmeter
Recirculation function – reduces the drain water flow
TECHNICAL DATA
Flow rate: 3000 l/h (800 gallons/hour)
Volume per day: 72000 liters (72cbm) (19200 gpd)
RO Membrane (type/pcs): 4040 / 12
Salt Retension: 95 – 99%
Permeate recovery: 50 – 75%
Maximum TDS: 1500 PPM
Operating Pressure: 6-12 bar
Maximum Pressure: 15 bar
Electrical supply: 380V
Power: 3 kW
Prefilter: 5 microns
Minimum water pressure supply: 2 bar
Water temperature: 5-35 C
Only free Chlorine inlet water
Model: EWRO 3000
CONNECTIONS
Permeate: 1″
Concentrate: 1″
Inlet: 1 1/2″
Dimensions: L x l x H : 70 x 52 x 240 cm
READY TO USE – ALREADY TESTED – RO SYSTEM
REVERSE OSMOSIS – EWRO 4300
APPLICATIONS
ExpertWater Reverse Osmosis can be used in multiple range of water treatment processes as pharmaceutical, process water, rinse water, steam boilers, heating and cooling circuits, agriculture, desalinisation, food and beverages, automotive industry (self service car wash), glass washing, cleaning – any application that needs to use demineralised water.
It delivers demineralised water by reverse osmosis process. This means a reduction of up to 95-99% of water conductivity (or TDS) and the result is a demineralized water. This means that from 100 ppm TDS after the reverse osmosis module we will remain with between 5 and 1 ppm depending on the water quality, ph and water temperature.
OPTIONS
- Raw water mixing line
- CIP connections
Flow rate: 4300 l/h (1147 gallons/ hour)
Volume per day: 103200 liters (103.2 cbm) (27500 gpd)
EQUIPMENT
Osmotic membranes 8040 – Included!
High Pressure Pump
8040 FRP Membrane housings
Mechanical Prefilter
Solenoid valves
Regulating Valves (concentrate and recirculation)
Stainless steel frame & panel
Conductivity monitor
Low pressure switch – to protect the system
Permeate – Concentrate and Recirculation Flowmeter
Recirculation function – reduces the drain water flow
TECHNICAL DATA
Flow rate: 4300 l/h (1147 gallons/ hour)
Volume per day: 103200 liters (103.2 cbm) (27500 gpd)
RO Membrane (type/pcs): 8040 / 3
Salt Retension: 95 – 99%
Permeate recovery: 50 – 75%
Maximum TDS: 1500 PPM
Operating Pressure: 6-12 bar
Maximum Pressure: 15 bar
Electrical supply: 380V
Power: 3 kW
Prefilter: 5 microns
Minimum water pressure supply: 2 bar
Water temperature: 5-35 C
Only free Chlorine inlet water
Model: EWRO 4300
CONNECTIONS
Permeate: 1/2″
Concentrate: 1/2″
Inlet: 1/2″
Dimensions: L x l x H : 2700x700x1550 CM
READY TO USE – ALREADY TESTED – RO SYSTEM
REVERSE OSMOSIS – EWRO 5400
APPLICATIONS
ExpertWater Reverse Osmosis can be used in multiple range of water treatment processes as pharmaceutical, process water, rinse water, steam boilers, heating and cooling circuits, agriculture, desalinisation, food and beverages, automotive industry (self service car wash), glass washing, cleaning – any application that needs to use demineralised water.
It delivers demineralised water by reverse osmosis process. This means a reduction of up to 95-99% of water conductivity (or TDS) and the result is a demineralized water. This means that from 100 ppm TDS after the reverse osmosis module we will remain with between 5 and 1 ppm depending on the water quality, ph and water temperature.
OPTIONS
- Raw water mixing line
Flow rate: 5400 l/h (1440 gallons/ hour)
Volume per day: 129600 liters (129.6 cbm) (34285 gpd)
EQUIPMENT
Osmotic membranes 8040 – Included!
High Pressure Pump
8040 SS Membrane housings
Mechanical Prefilter
Solenoid valves
Regulating Valves (concentrate and recirculation)
Stainless steel frame & panel
Conductivity monitor
Low pressure switch – to protect the system
Permeate – Concentrate and Recirculation Flowmeter
Recirculation function – reduces the drain water flow
TECHNICAL DATA
Flow rate: 5400 l/h (1440 gallons/ hour)
Volume per day: 129600 liters (129.6 cbm) (34285 gpd)
RO Membrane (type/pcs): 8040 / 4
Salt Retension: 95 – 99%
Permeate recovery: 50 – 75%
Maximum TDS: 1500 PPM
Operating Pressure: 6-12 bar
Maximum Pressure: 15 bar
Electrical supply: 380V
Power: 5.5 kW
Prefilter: 5 microns
Minimum water pressure supply: 2 bar
Water temperature: 5-35 C
Only free Chlorine inlet water
Model: EWRO 5400
CONNECTIONS
Permeate: 1 1/4″
Concentrate: 1″
Inlet: 1/2″
Dimensions: L x l x H : 2700x700x1550 CM
READY TO USE – ALREADY TESTED – RO SYSTEM
REVERSE OSMOSIS – EWRO 7000
APPLICATIONS
ExpertWater Reverse Osmosis can be used in multiple range of water treatment processes as pharmaceutical, process water, rinse water, steam boilers, heating and cooling circuits, agriculture, desalinisation, food and beverages, automotive industry (self service car wash), glass washing, cleaning – any application that needs to use demineralised water.
It delivers demineralised water by reverse osmosis process. This means a reduction of up to 95-99% of water conductivity (or TDS) and the result is a demineralized water. This means that from 100 ppm TDS after the reverse osmosis module we will remain with between 5 and 1 ppm depending on the water quality, ph and water temperature.
OPTIONS
- Raw water mixing line
- CIP connections
Flow rate: 7000 l/h (1867 gallons/hour)
Volume per day: 168000 liters (168 cbm) (44800 gpd)
EQUIPMENT
Osmotic membranes 8040 – Included!
High Pressure Pump
8040 SS Membrane housings
Mechanical Prefilter
Solenoid valves
Regulating Valves (concentrate and recirculation)
Stainless steel frame & panel
Conductivity monitor
Low pressure switch – to protect the system
Permeate – Concentrate and Recirculation Flowmeter
Recirculation function – reduces the drain water flow
TECHNICAL DATA
Flow rate: 7000 l/h (1867 gallons/hour)
Volume per day: 168000 liters (168 cbm) (44800 gpd)
RO Membrane (type/pcs): 8040 / 5
Salt Retension: 95 – 99%
Permeate recovery: 50 – 75%
Maximum TDS: 1500 PPM
Operating Pressure: 6-12 bar
Maximum Pressure: 15 bar
Electrical supply: 380V
Power: 5.8 kW
Prefilter: 5 microni
Minimum water pressure supply: 2 bar
Water temperature: 5-35 C
Only free Chlorine inlet water
Model: EWRO 7000
CONNECTIONS
Permeate: 1 1/4″
Concentrate: 1″
Inlet: 1 1/2″
Dimensions: L x l x H : 3800 x 820 x 1950 cm
READY TO USE – ALREADY TESTED – RO SYSTEM
REVERSE OSMOSIS – EWRO 8000
APPLICATIONS
ExpertWater Reverse Osmosis can be used in multiple range of water treatment processes as pharmaceutical, process water, rinse water, steam boilers, heating and cooling circuits, agriculture, desalinisation, food and beverages, automotive industry (self service car wash), glass washing, cleaning – any application that needs to use demineralised water.
It delivers demineralised water by reverse osmosis process. This means a reduction of up to 95-99% of water conductivity (or TDS) and the result is a demineralized water. This means that from 100 ppm TDS after the reverse osmosis module we will remain with between 5 and 1 ppm depending on the water quality, ph and water temperature.
OPTIONS
- Raw water mixing line
- CIP connections
Flow rate: 8000 l/h (2133 gallons/hour)
Volume per day: 19200 liters (192 cbm) (51200 gpd)
EQUIPMENT
Osmotic membranes 8040 – Included!
High Pressure Pump
8040 SS Membrane housings
Mechanical Prefilter
Solenoid valves
Regulating Valves (concentrate and recirculation)
Stainless steel frame & panel
Conductivity monitor
Low pressure switch – to protect the system
Permeate – Concentrate and Recirculation Flowmeter
Recirculation function – reduces the drain water flow
TECHNICAL DATA
Flow rate: 8000 l/h (2133 gallons/hour)
Volume per day: 19200 liters (192 cbm) (51200 gpd)
RO Membrane (type/pcs): 8040 / 6
Salt Retension: 95 – 99%
Permeate recovery: 50 – 75%
Maximum TDS: 1500 PPM
Operating Pressure: 6-12 bar
Maximum Pressure: 15 bar
Electrical supply: 380V
Power: 4 kW
Prefilter: 5 microns
Minimum water pressure supply: 2 bar
Water temperature: 5-35 C
Only free Chlorine inlet water
Model: EWRO 7000
CONNECTIONS
Permeate: 1 1/2″
Concentrate: 1 1/4″
Inlet: 2″
Dimensions: L x l x H : 3800 x 820 x 1950 cm
READY TO USE – ALREADY TESTED – RO SYSTEM
REVERSE OSMOSIS – EWRO 10000
APPLICATIONS
ExpertWater Reverse Osmosis can be used in multiple range of water treatment processes as pharmaceutical, process water, rinse water, steam boilers, heating and cooling circuits, agriculture, desalinisation, food and beverages, automotive industry (self service car wash), glass washing, cleaning – any application that needs to use demineralised water.
It delivers demineralised water by reverse osmosis process. This means a reduction of up to 95-99% of water conductivity (or TDS) and the result is a demineralized water. This means that from 100 ppm TDS after the reverse osmosis module we will remain with between 5 and 1 ppm depending on the water quality, ph and water temperature.
OPTIONS
- Raw water mixing line
- CIP connections
Flow rate: 10000 l/h (2667 gallons/hour)
Volume per day: 240000 liters (240 cbm) (64000 gpd)
EQUIPMENT
Osmotic membranes 8040 – Included!
High Pressure Pump
8040 SS Membrane housings
Mechanical Prefilter
Solenoid valves
Regulating Valves (concentrate and recirculation)
Stainless steel frame & panel
Conductivity monitor
Low pressure switch – to protect the system
Permeate – Concentrate and Recirculation Flowmeter
Recirculation function – reduces the drain water flow
TECHNICAL DATA
Flow rate: 10000 l/h (2667 gallons/hour)
Volume per day: 240000 liters (240 cbm) (64000 gpd)
RO Membrane (type/pcs): 8040 / 8
Salt Retension: 95 – 99%
Permeate recovery: 50 – 75%
Maximum TDS: 1500 PPM
Operating Pressure: 6-12 bar
Maximum Pressure: 15 bar
Electrical supply: 380V
Power: 7.5 kW
Prefilter: 5 microns
Minimum water pressure supply: 2 bar
Water temperature: 5-35 C
Only free Chlorine inlet water
Model: EWRO 10000
CONNECTIONS
Permeate: 1 1/2″
Concentrate: 1 1/4″
Inlet: 2″
Dimensions: L x l x H : 3800 x 820 x 1950 cm
READY TO USE – ALREADY TESTED – RO SYSTEM
REVERSE OSMOSIS – EWRO 12000
APPLICATIONS
ExpertWater Reverse Osmosis can be used in multiple range of water treatment processes as pharmaceutical, process water, rinse water, steam boilers, heating and cooling circuits, agriculture, desalinisation, food and beverages, automotive industry (self service car wash), glass washing, cleaning – any application that needs to use demineralised water.
It delivers demineralised water by reverse osmosis process. This means a reduction of up to 95-99% of water conductivity (or TDS) and the result is a demineralized water. This means that from 100 ppm TDS after the reverse osmosis module we will remain with between 5 and 1 ppm depending on the water quality, ph and water temperature.
OPTIONS
- Raw water mixing line
- CIP connections
Flow rate: 12000 l/h (3200 gallons/hour)
Volume per day: 288000 liters (288 cbm) (76800 gpd)
EQUIPMENT
Osmotic membranes 8040 – Included!
High Pressure Pump
8040 SS Membrane housings
Mechanical Prefilter
Solenoid valves
Regulating Valves (concentrate and recirculation)
Stainless steel frame & panel
Conductivity monitor
Low pressure switch – to protect the system
Permeate – Concentrate and Recirculation Flowmeter
Recirculation function – reduces the drain water flow
TECHNICAL DATA
Flow rate: 12000 l/h (3200 gallons/hour)
Volume per day: 288000 liters (288 cbm) (76800 gpd)
RO Membrane (type/pcs): 8040 / 10
Salt Retension: 95 – 99%
Permeate recovery: 50 – 75%
Maximum TDS: 1500 PPM
Operating Pressure: 6-12 bar
Maximum Pressure: 15 bar
Electrical supply: 380V
Power: 11 kW
Prefilter: 5 microns
Minimum water pressure supply: 2 bar
Water temperature: 5-35 C
Only free Chlorine inlet water
Model: EWRO 12000
CONNECTIONS
Permeate: 1 1/2″
Concentrate: 1 1/4″
Inlet: 2″
Dimensions: L x l x H : 3800 x 820 x 1950 cm
READY TO USE – ALREADY TESTED – RO SYSTEM
REVERSE OSMOSIS – EWRO 15000
APPLICATIONS
ExpertWater Reverse Osmosis can be used in multiple range of water treatment processes as pharmaceutical, process water, rinse water, steam boilers, heating and cooling circuits, agriculture, desalinisation, food and beverages, automotive industry (self service car wash), glass washing, cleaning – any application that needs to use demineralised water.
It delivers demineralised water by reverse osmosis process. This means a reduction of up to 95-99% of water conductivity (or TDS) and the result is a demineralized water. This means that from 100 ppm TDS after the reverse osmosis module we will remain with between 5 and 1 ppm depending on the water quality, ph and water temperature.
OPTIONS
- Raw water mixing line
- CIP connections
Flow rate: 15000 l/h (4000 gallons/hour)
Volume per day: 360000 liters (360 cbm) (96000 gpd)
EQUIPMENT
Osmotic membranes 8040 – Included!
High Pressure Pump
8040 SS Membrane housings
Mechanical Prefilter
Solenoid valves
Regulating Valves (concentrate and recirculation)
Stainless steel frame & panel
Conductivity monitor
Low pressure switch – to protect the system
Permeate – Concentrate and Recirculation Flowmeter
Recirculation function – reduces the drain water flow
TECHNICAL DATA
Flow rate: 15000 l/h (4000 gallons/hour)
Volume per day: 360000 liters (360 cbm) (96000 gpd)
RO Membrane (type/pcs): 8040 / 12
Salt Retension: 95 – 99%
Permeate recovery: 50 – 75%
Maximum TDS: 1500 PPM
Operating Pressure: 6-12 bar
Maximum Pressure: 15 bar
Electrical supply: 380V
Power: 11 kW
Prefilter: 5 microns
Minimum water pressure supply: 2 bar
Water temperature: 5-35 C
Only free Chlorine inlet water
Model: EWRO 15000
CONNECTIONS
Permeate: 1 1/2″
Concentrate: 1 1/4″
Inlet: 2″
Dimensions: L x l x H : 3800 x 820 x 1950 cm
READY TO USE – ALREADY TESTED – RO SYSTEM
REVERSE OSMOSIS – EWRO 20000
APPLICATIONS
ExpertWater Reverse Osmosis can be used in multiple range of water treatment processes as pharmaceutical, process water, rinse water, steam boilers, heating and cooling circuits, agriculture, desalinisation, food and beverages, automotive industry (self service car wash), glass washing, cleaning – any application that needs to use demineralised water.
It delivers demineralised water by reverse osmosis process. This means a reduction of up to 95-99% of water conductivity (or TDS) and the result is a demineralized water. This means that from 100 ppm TDS after the reverse osmosis module we will remain with between 5 and 1 ppm depending on the water quality, ph and water temperature.
OPTIONS
- Raw water mixing line
- CIP connections
Flow rate: 20000 l/h (5333 gallons/hour)
Volume per day: 480000 liters (480 cbm) (120000 gpd)
EQUIPMENT
Osmotic membranes 8040 – Included!
High Pressure Pump
8040 SS Membrane housings
Mechanical Prefilter
Solenoid valves
Regulating Valves (concentrate and recirculation)
Stainless steel frame & panel
Conductivity monitor
Low pressure switch – to protect the system
Permeate – Concentrate and Recirculation Flowmeter
Recirculation function – reduces the drain water flow
TECHNICAL DATA
Flow rate: 20000 l/h (5333 gallons/hour)
Volume per day: 480000 liters (480 cbm) (120000 gpd)
RO Membrane (type/pcs): 8040 / 18
Salt Retension: 95 – 99%
Permeate recovery: 50 – 75%
Maximum TDS: 1500 PPM
Operating Pressure: 6-12 bar
Maximum Pressure: 15 bar
Electrical supply: 380V
Power: 15 kW
Prefilter: 5 microns
Minimum water pressure supply: 2 bar
Water temperature: 5-35 C
Only free Chlorine inlet water
Model: EWRO 20000
CONNECTIONS
Permeate: 2″
Concentrate: 2″
Inlet: 2″ 1/2″
Dimensions: L x l x H : 3800 x 820 x 1950 cm
READY TO USE – ALREADY TESTED – RO SYSTEM
REVERSE OSMOSIS – EWRO 25000
APPLICATIONS
ExpertWater Reverse Osmosis can be used in multiple range of water treatment processes as pharmaceutical, process water, rinse water, steam boilers, heating and cooling circuits, agriculture, desalinisation, food and beverages, automotive industry (self service car wash), glass washing, cleaning – any application that needs to use demineralised water.
It delivers demineralised water by reverse osmosis process. This means a reduction of up to 95-99% of water conductivity (or TDS) and the result is a demineralized water. This means that from 100 ppm TDS after the reverse osmosis module we will remain with between 5 and 1 ppm depending on the water quality, ph and water temperature.
OPTIONS
- Raw water mixing line
- CIP connections
Flow rate: 25000 l/h (6667 gallons/hour)
Volume per day: 600000 liters (600 cbm) (160000 gpd)
EQUIPMENT
Osmotic membranes 8040 – Included!
High Pressure Pump
8040 SS Membrane housings
Mechanical Prefilter
Solenoid valves
Regulating Valves (concentrate and recirculation)
Stainless steel frame & panel
Conductivity monitor
Low pressure switch – to protect the system
Permeate – Concentrate and Recirculation Flowmeter
Recirculation function – reduces the drain water flow
TECHNICAL DATA
Flow rate: 25000 l/h (6667 gallons/hour)
Volume per day: 600000 liters (600 cbm) (160000 gpd)
RO Membrane (type/pcs): 8040 / 21
Salt Retension: 95 – 99%
Permeate recovery: 50 – 75%
Maximum TDS: 1500 PPM
Operating Pressure: 6-12 bar
Maximum Pressure: 15 bar
Electrical supply: 380V
Power: 15 kW
Prefilter: 5 microns
Minimum water pressure supply: 2 bar
Water temperature: 5-35 C
Only free Chlorine inlet water
Model: EWRO 25000
CONNECTIONS
Permeate: 2″
Concentrate: 2″
Inlet: 2″ 1/2″
Dimensions: L x l x H : 3800 x 820 x 1950 cm
Weight: 40 kg
READY TO USE – ALREADY TESTED – RO SYSTEM
