Water filtration



Water filtration

In most cases, both well water and municipality water have turbidity (sediments). If it is visible or not, it will affect the human body and the facilities in the location. Water may also present other problems, such as: organic contaminants, hydrogen sulphide, metals - iron and manganese - nitrates, chlorine, etc. The solutions are of several types, from the domestic filters with replaceable cartridges, to the automatic filters that regenerate their filter media itself. All sanitary facilities that come into contact with water and all treatment systems must be protected from sediments.

filtrare

Domestic Water Filter - Protects water taps, retaining sediments up to 20 microns, based on a removable polypropylene cartridge.

Centrifugal Filters - It also has a filter fineness of 20 microns. The operation is based on a propeller that prints the force required for the filtration, and the customers can see the sediments through the transparent bowl.

Automatic Filters- It has the fineness of 5 micron filtration and it also filters the taste, colours, smell and chlorine. The filter is composed from activated carbon, turbidex and zeolite, and the system is controlled by the microprocessor. In this way, it can regenerate automatically at a preset time.

It exists in both the domestic and industrial versions.

Automatic filters

The automatic filters are used in different applications: SEDIMENT, TASTE, SMELL, IRON, MANGANESE. The microprocessor from the system can start the regeneration cycles after a pre set number of days . The sediments retained are automatically flushed to the drain. It will provide clean water for the entire location.

They are working with filter media : AFM – TURBIDEX - PYROLOX,  Gravel and Coconut Active CARBON  - approved for food use

Regeneration by backwash  and fast rinse of the filter media

No consumables - the filter media is replaced every 3 to 10 years

You can enter the days between regenerations  in the system computer

The operating parameters are controlled by the microprocessor

The components that come in contact with water are made from plastic or Teflon. Other systems have these components made of metal.

Centrifugal filters

It retains the sediments from the pipes, and inside it is centrifugal vane that provide a centrifugal force who helps in the filtration process. The drain valve can remove the accumulated sediments. The filter sleeve will be replaced after longer period .

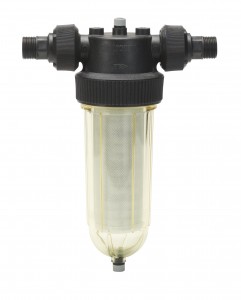

filtru centrifugal NW25Filtru Centrifugal NW 25

  • Debit maxim – 5 m3 / h
  • Conexiuni intrare – iesire: 1”
  • Presiune apa (max) : 10 bar
  • Finete de filtrare: 20 microni
  • Pierdere de presiune: 0.1 – 1 bar
  • Temperatura maxima a apei: 4-50 °C
  • Schimbare manson – in functie de turbiditatea apei
  • Dimensiuni: h: 37,7 cm l: 15 (fara conectori FE)

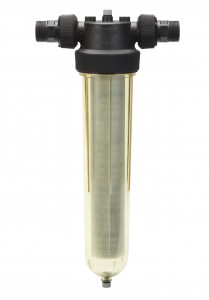

filtru centrifugal NW32Filtru Centrifugal NW 32

  • Debit maxim – 7 m3 / h
  • Conexiuni intrare – iesire: 1 1/4 "
  • Presiune apa (max) : 10 bar
  • Finete de filtrare: 20 microni
  • Pierdere de presiune: 0.1 – 1 bar
  • Temperatura maxima a apei: 4-50 °C
  • Schimbare manson – in functie de turbiditatea apei
  • Dimensiuni: h: 56 cm l: 15 (fara conectori FE)

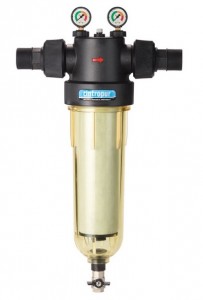

filtru centrifugal NW50Filtru Centrifugal NW 50

  • Debit maxim – 15 m3 / h
  • Conexiuni intrare – iesire: 2”
  • Presiune apa (max) : 25 bar
  • Finete de filtrare: 20 microni
  • Pierdere de presiune: 0.1 – 1 bar
  • Temperatura maxima a apei: 4-50 °C
  • Schimbare manson – in functie de turbiditatea apei
  • Dimensiuni: h: 37,7 cm l: 15 (fara conectori FE)

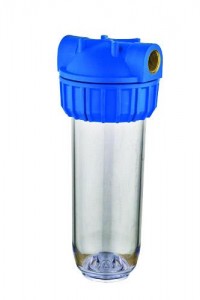

Domestic filters

A domestic filter retains the sediments from the water, and improves thesystems functioning from the location. The sediments are retained due to the polypropylene cartridge that will be replaced after the color is changed.

Filtru Domestic
  • Debit maxim – 1.9 m3 / h
  • Conexiuni intrare – iesire: 1”
  • Presiune apa (max) : 6 bar
  • Finete de filtrare: 20 microni
  • Pierdere de presiune: 0.5 – 1.5 bar
  • Temperatura maxima a apei: 4-50 °C
  • Schimbare manson – in functie de turbiditatea apei
  • Dimensiuni: h: 30 cm l: 13
